Description
This product is a 1 channel universal ZIGBEE wireless smart switch, for your smart home system to remotely and automatically turn on/off home appliances and electronic devices by mobile APP. It can connect and control four appliances on APP at the same time, and you can independently turn on/off each of the four gangs. It also supports timing turning on/off the appliances at a specified time and share to others so that you can control your smart home together with your family. You can also voice control your home appliances by Amazon Alexa, and for Google Home/Nest, IFTTT, and enjoy intelligent life and make your home smarter.
Features
- App Support: Free iOS and for Android mobile Tuya APP/Smart Life APP.
- Sync Status: Real-time device status provided to App.
- Remote ON/OFF: Turn 4 electrical devices on/off remotely from anywhere.
- 3 Working Modes: Switch among interlock/self-locking/inching modes.
- Independent control: Control each gang separately in Tuya APP/Smart Life APP.
- Supports remotely turn on or off connected appliances, for example light, electric kettle, electric rice cooker, electric curtain, Garage door opener, Motor, etc.
- Timing: Supports 8 enabled countdown/single/repeat timing tasks to turn on/off at specified time.
- Voice Control: Compatible perfectly with Amazon Alexa, for Google Home, for Google Nest, IFTTT.
- Share Control: Control your smart home together with your family.
Specifications
- Input voltage: AC/DC 7-32V, Micro USB 5V input.
- Max current: 2200W/10A
- Wireless standard: Zigbee 3.0.
- Working temperature: -20℃~70℃
- The life of Relay Model is more than 1,000,00.
- 3 Control methods: APP, 433MHz Remote, voice control
- 3 Working Modes: Self-locking, interlock and inching mode
- Voice Control: Alexa Google Home Compatible
- APP: Smart Life / Tuya Smart
- Size: 74mm x 45mm x 28mm
Notes
- You need to have a Zigbee gateway ZIGBEE HUB.
- Try to be close to the Zigbee gateway when pairing.
- It cannot connect directly to a WiFi network.
- Default inching Function: Press the open relay by mobile phone, then cut off the pull-on immediately, you can set the inching time in APP, it has the timing-share function at the same time.
- Self-locking when press the inching and locking button with the light on. Press open relay to pull-on, press close relay to cut off.

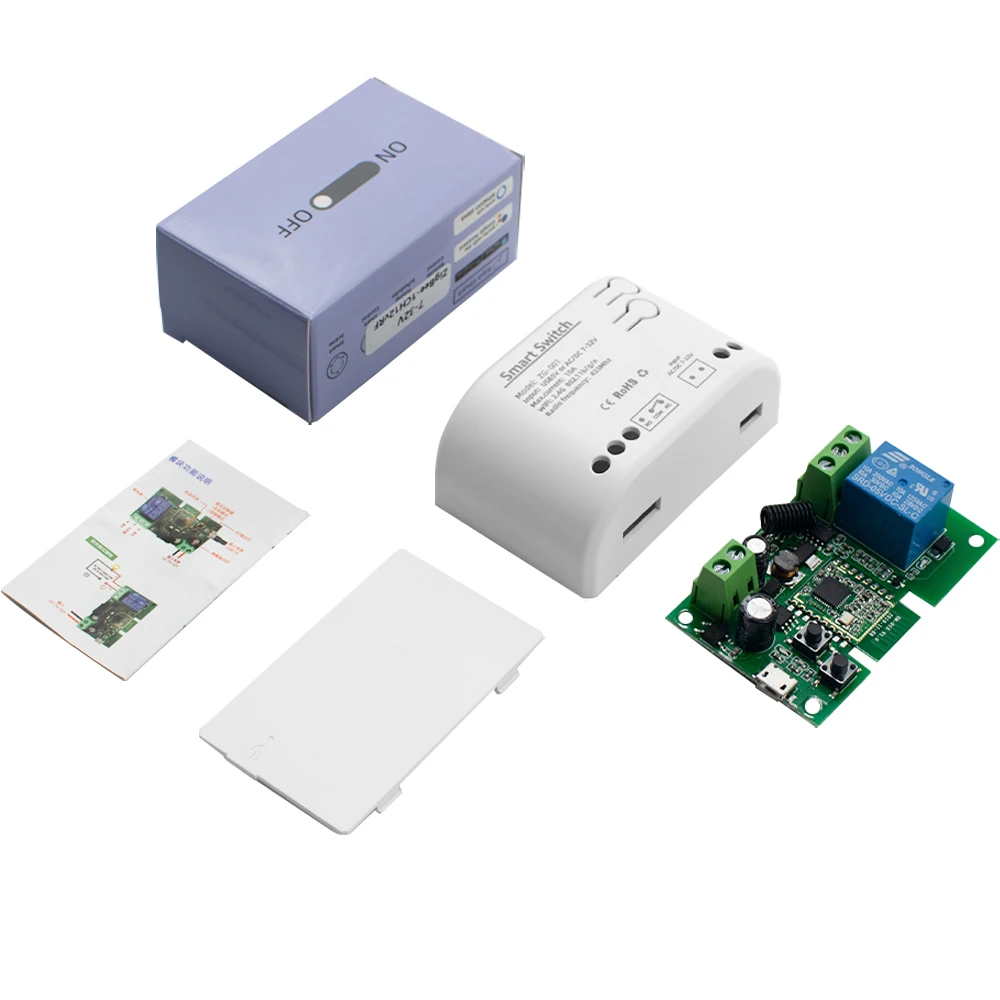

Include
- 1* Zigbee module
- 1* manual
Remote Control
Control your home devices anytime, anywhere.
Timing Function
You can the time to turn on lights and turn on the fans in the office.
1CH Remote control of garage door opening and closing.
Remotely give a pulse signal to turn on/off Garage Door, Door Access
Only one motor can be connected to one switch.
Group Control
Set all of your smart switches in a group by Smart Life app. Then one-click to turn/off all of your appliances or lightings by smartphone.
Smart Scene
Creating your own scene to trigger ON/OFF home appliances by departure mode, home mode, temperature, humidity, or other environmental conditions.
Family Sharing
Share the control with family member. Enjoy the convenience and happiness together.
Hands-Free Voice Control
Compatible with Alexa & Google Home, the smart switch allows you to control lights on/off with your voice.
Smart Scene
Creating your own scene to trigger ON/OFF home appliances by departure mode, home mode, temperature, humidity, or other environmental conditions.
Self-locking Switch Application Scenarios
Momentary Button (Delay time 1s) Application Scenarios

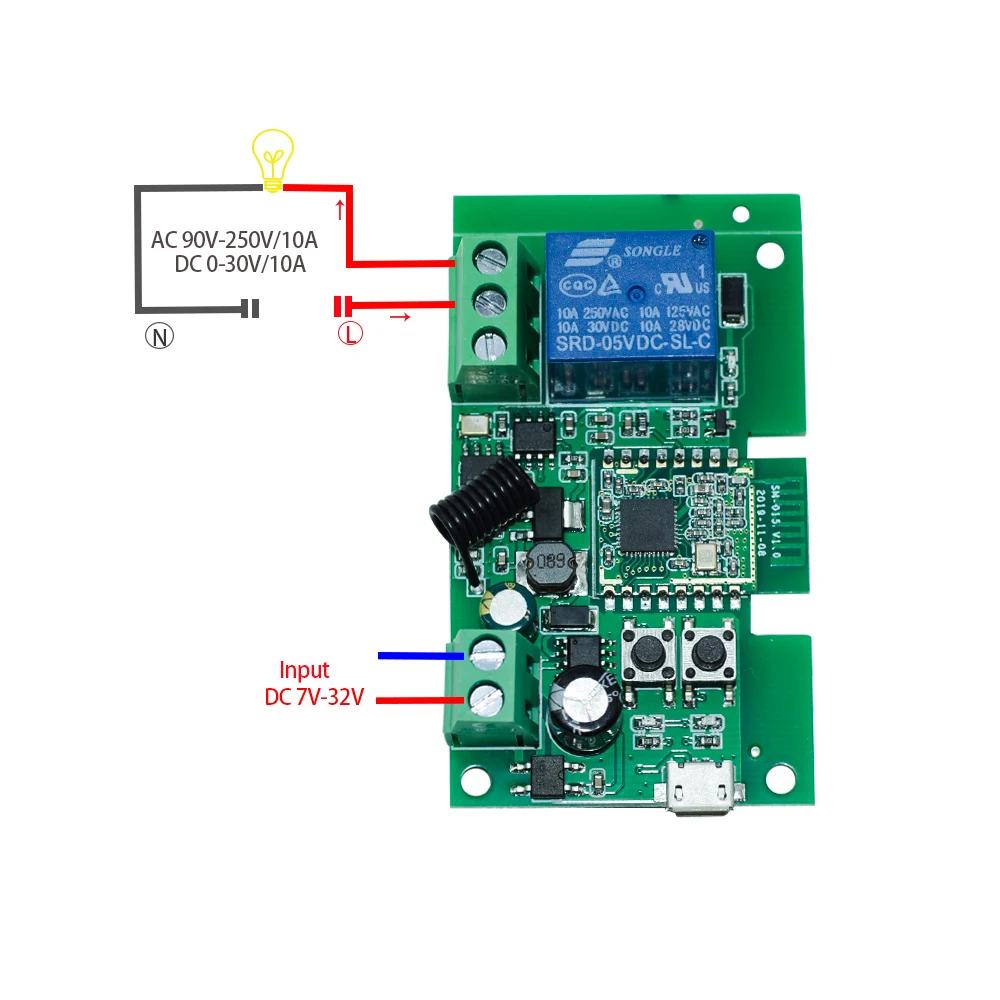

1CH wiring diagram
