The ANENG 683 Smart Multimeter is a professional-grade 3 5/6 digit digital multitester designed for precise measurement and ease of use. Featuring an intuitive touch interface and a 6000-count LCD with analog bar display, this multimeter allows for continuous operation without the need to manually switch functions. The device intelligently detects and measures AC/DC voltage and resistance, offering both auto and manual range options.

Key Features:

• Smart touch operation with auto function selection
• High-contrast 6000-count LCD with analog bar for dynamic readings
• Full-function measurement: AC/DC voltage & current, resistance, capacitance, frequency, temperature

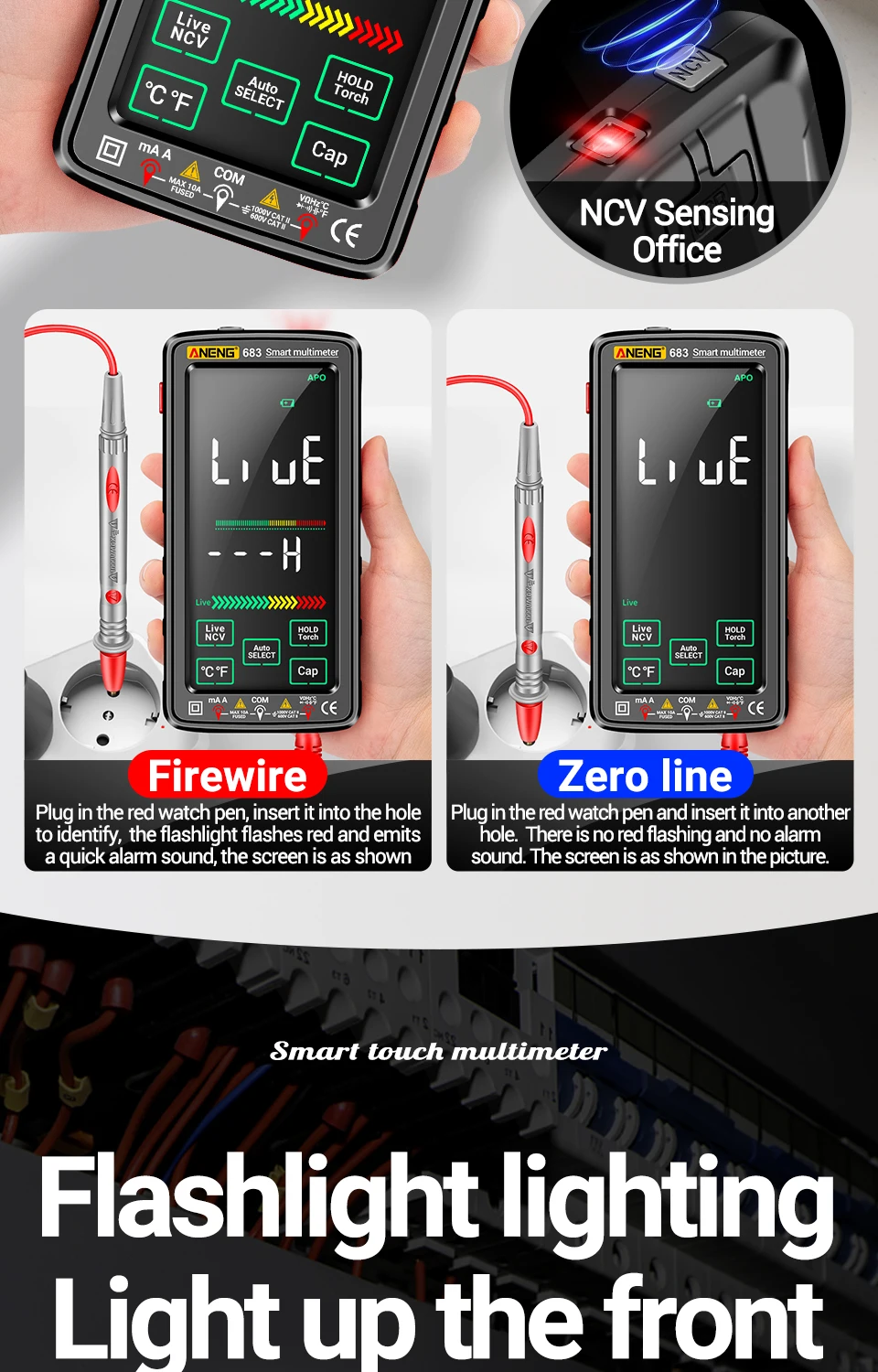

• Additional utilities: NCV (non-contact voltage) detection, diode & continuity test, live-line indication, duty cycle, data hold, auto power-off, and built-in flashlight

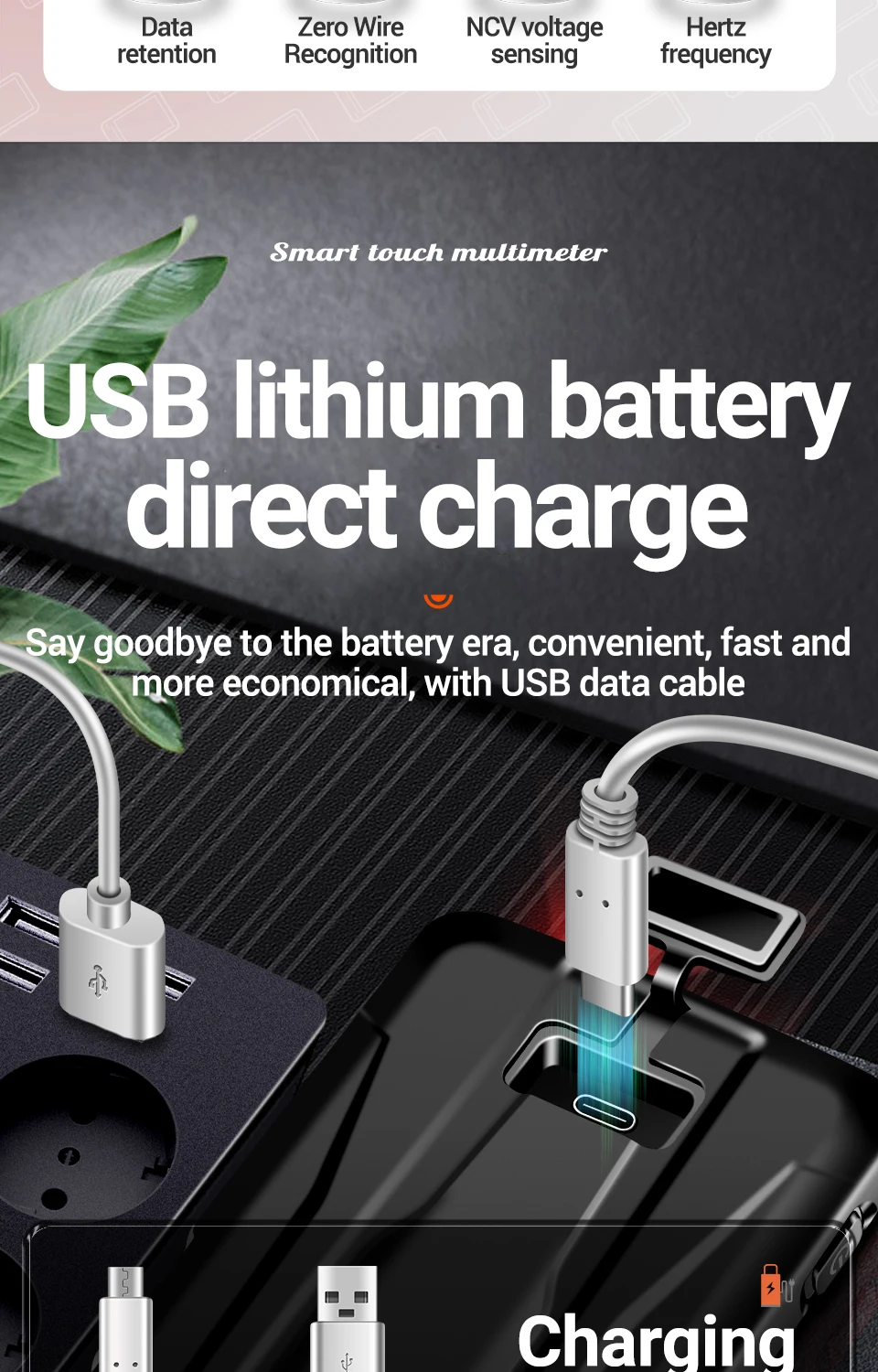

• Rechargeable 3.7V/2800mAh battery for long-lasting use
• Robust protection with built-in fuses and overload safeguards

Technical Specifications:

• Display: 6000 Counts LCD with analog bar
• Battery: 3.7V 2800mAh rechargeable Li-ion
• DC Voltage: 6V–1000V (±0.5–0.8% accuracy)
• AC Voltage: 6V–750V (±0.8–1.0% accuracy)
• Current (AC/DC): Up to 10A (±1.0–2.5% accuracy)
• Resistance: Up to 60MΩ
• Capacitance: Up to 100mF
• Frequency: Up to 999.9kHz
• Temperature: -40℃ to 1000℃ / -40℉ to 1832℉
• Fuse Protection: Yes (for μA/mA ranges)
• NCV Detection, Buzzer, Torch, Data Hold, Diode, Continuity Test, and Live-Line Detection: Included
• Safety Rating: Max voltage input 1000V DC / 750V AC between terminal and ground

This multimeter is ideal for professionals and enthusiasts in laboratories, factories, electronic workshops, and household electrical maintenance.
