Description
AMPCOM Network Cable Tester RJ45 RJ11 Network LAN Ethernet RJ45 Cable Tester tool LAN Networking Tool network Repair
- AMPCOM multiply network teltphone cable tester, use for testing your homemade Ethernet patch cables or telephone lines to make sure they are in working order prior to connecting to your devices
- Cable Tester for RJ11/RJ12/RJ14 Telephone wire and RJ45 LAN cable to uncover problematic shorts, open wires, crossing pairs and other wiring mishaps
- Easy to use, easy to carry: Automatically runs all tests and checks for continuity,LED status display. Slow and fast test switch. Compact size with a high quality soft leather case,hand-held for portability
- Two Power Supply Methods: Requires one 9-volt battery (not included) or through the type-c power port power work. Protective power switch for low power consumption.
- Package content: Cable tester × 1 Type-c charge cable × 1,Small leather bag × 1

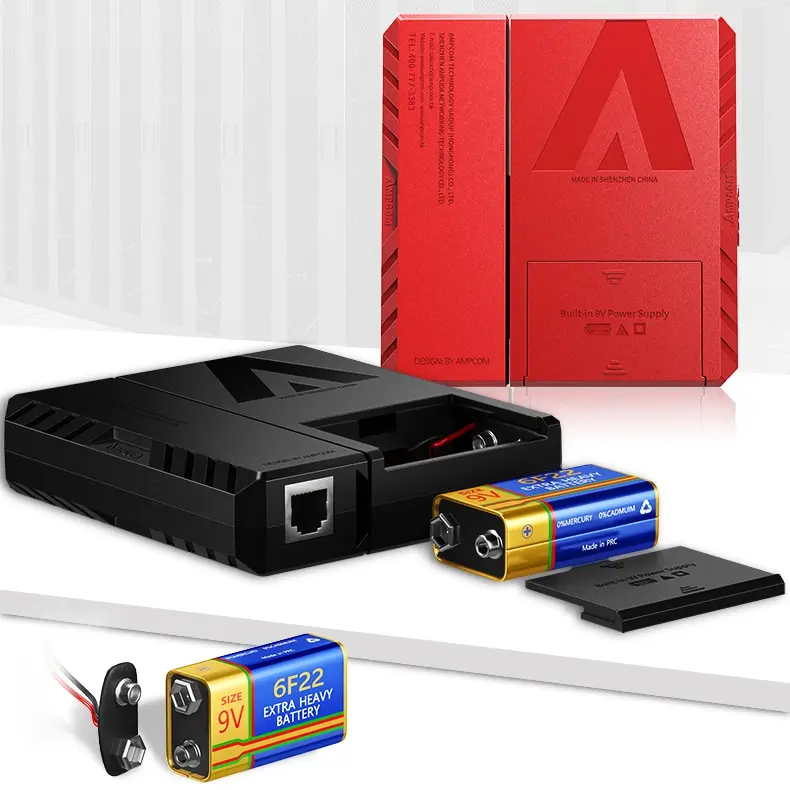

Two Power Supply Methods
Powered by a 9V battery; Powered by the type-c port charging; With a type-c cable in package
LED Lighting
100% new network tester, with LED lights and micro-power supply interface
Upgrade Fully Automatic Detection Function

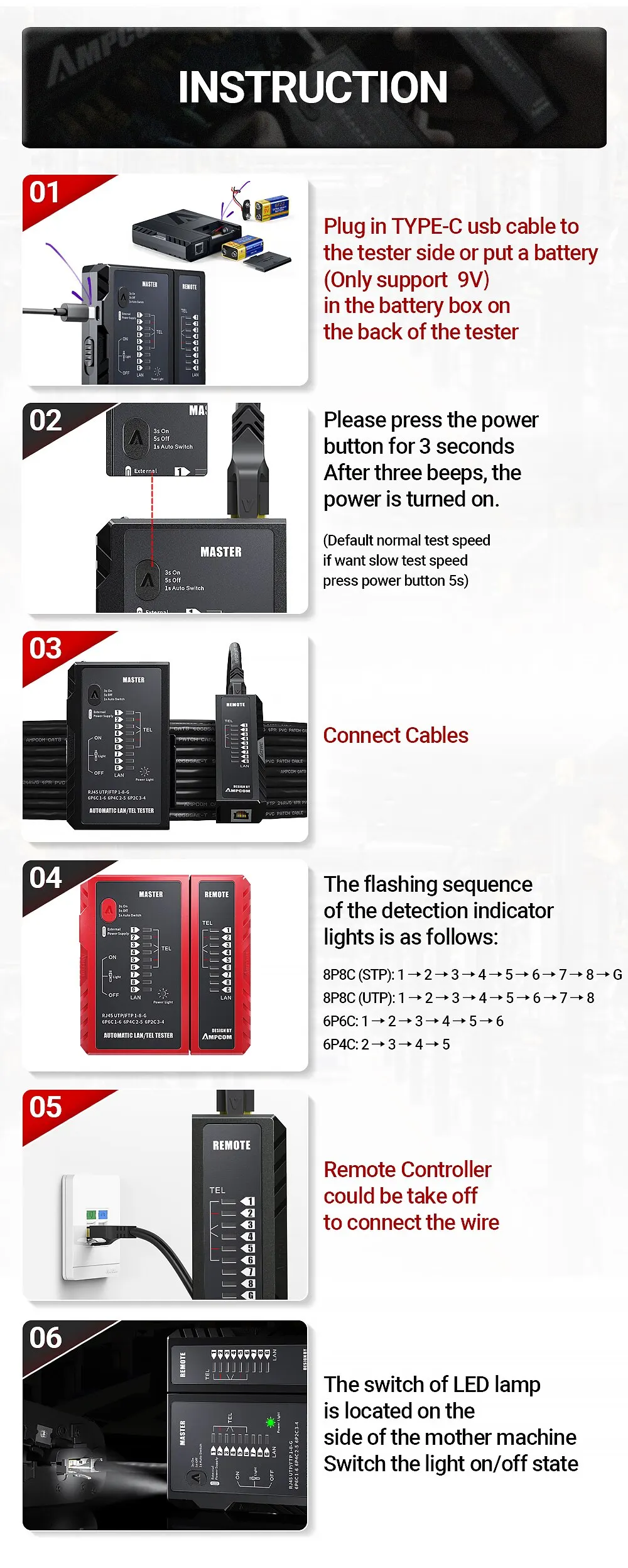

Key function description:
Turn on in 3 seconds;
1 second switching speed;
3 seconds auto mode;
5 seconds shutdown.
At the same time can make a sound.
Two-In-One Model Design Scheme
Push it away by hand to divide the device into two,
which is convenient for a device to be tested at a distance
Product Features & Introduction
1.Can speceners drast-twisted cables 1,2,3,4,5,6,7,8 and G, meanwhile, can judge wrong connection, short circuit and open circuit.
2.Test of double-twisted cables:
switch on the power. Put cables into both main tester and remote test.
The lights of the main tester will turn on sequential from 1 to G.

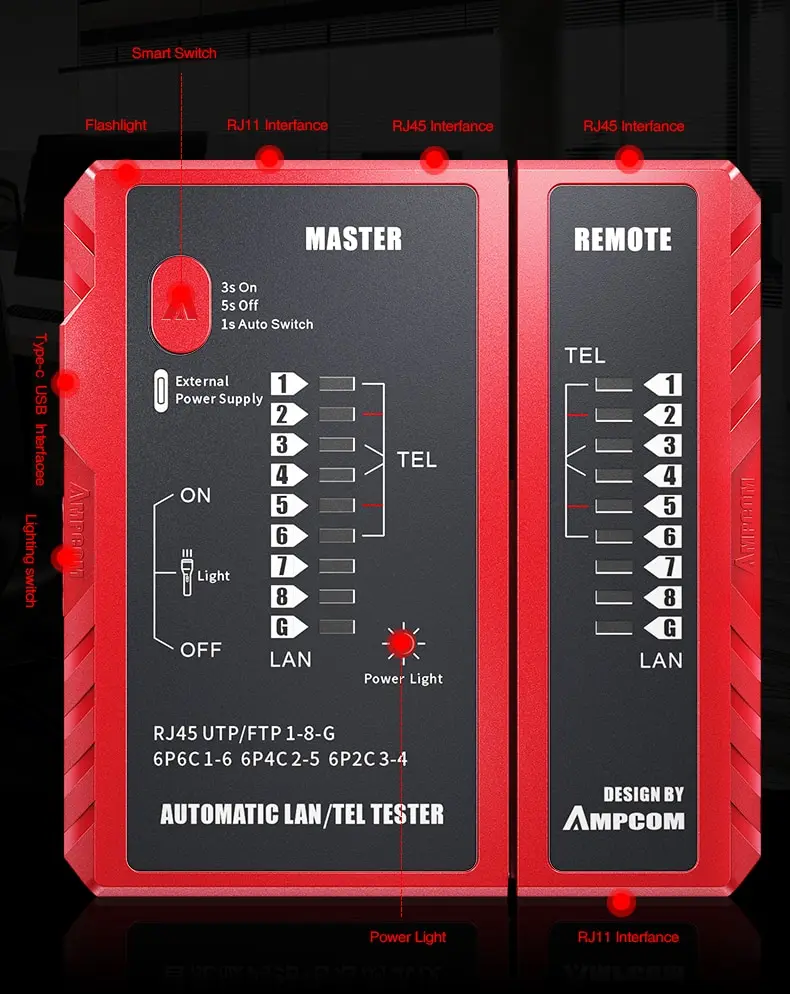

Emergency Lighting Function
The flashlight switch is located on the left side of the host
Exquisite Appearance & Excellent Quality
The interface uses pure copper nickel plating,
and the pin uses 50μ gold plating,
which effectively improves the corrosion resistance and durability of the product.
Accurate Testing
The tester can test unshielded cables and shielded cables
Note:
UTP: The lights of the main tester will turn on sequential from 1 to 8.
STP: The lights of the main tester will turn on sequential from 1 to G.
Exquisite & Unique Design
We want to make sure you have a better using experiences using AMPCOM Products
We are always ready and happy to assist.
Easy to Carry
Portable handheld design makes this easy to use.

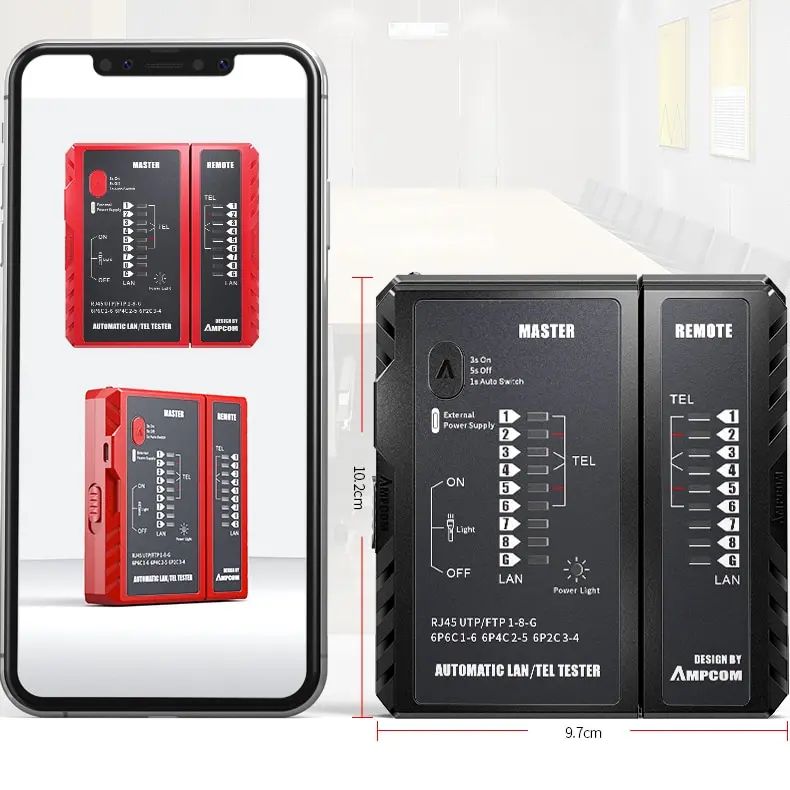

Size: 10.2*9.7*3.6cm

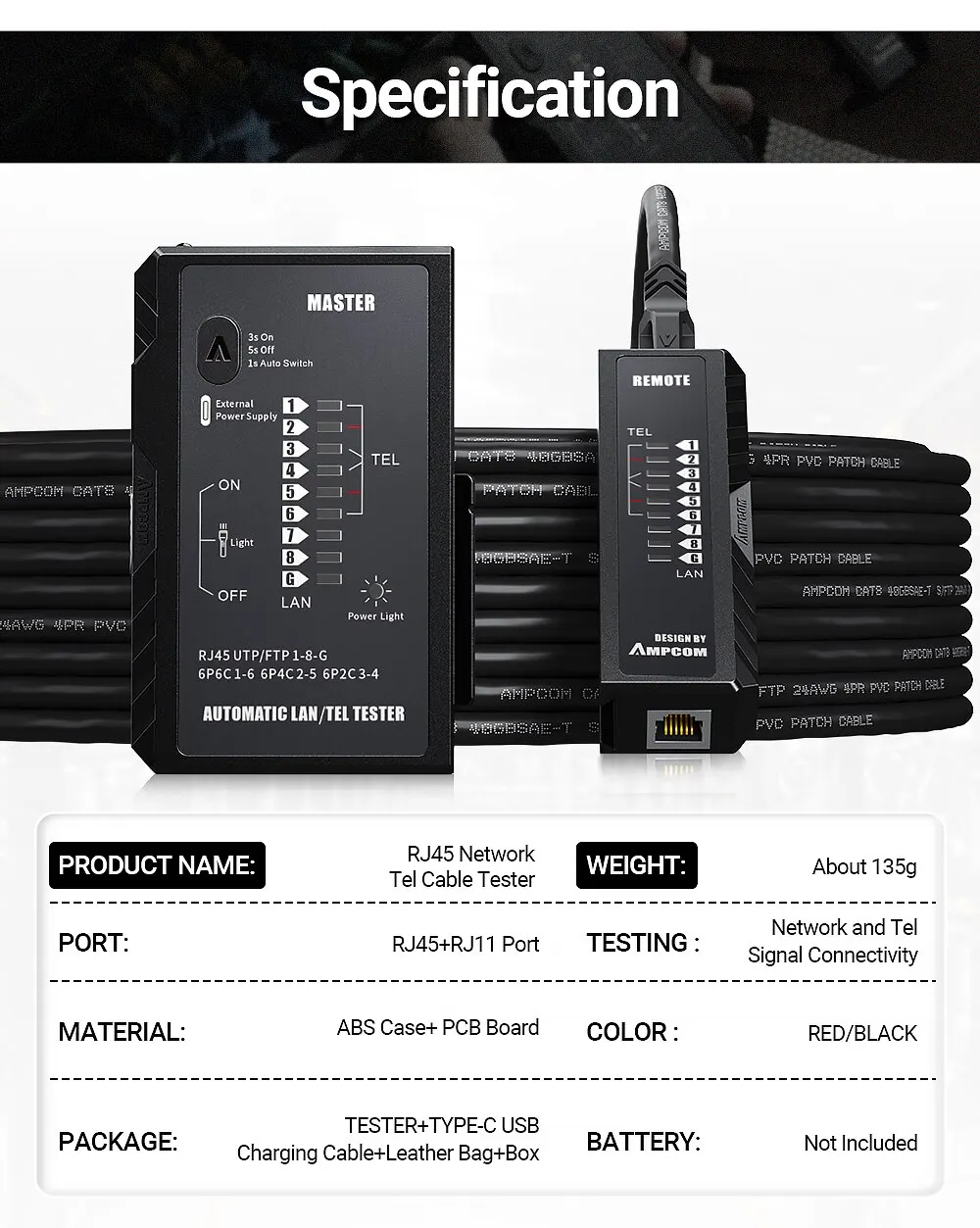

Support Testing Multiple Types of Interfaces
Support testing RJ1 / RJ12 / RJ45 interface
Product Packaging
Cable tester × 1 Type-c charge cable × 1,Small leather bag × 1
Features
RJ45 Port Test
- UTP: The lights of the main tester will turn on sequentiy from 1 to 8.
- STP: The lights of the main tester will turn on sequentiy from 1 to G.
RJ11 Port Test
- 6P6C: The lights of the main tester will turn on sequentiy from 1 to 6;
- 6P4C: The lights of the main tester will turn on sequentiy from 2 to 5;
- 6P2C: The lights of the main tester will turn on sequentiy from 3 to 4;
Following are abnormal connections:
If one cable, for example cable NO.3 is open circuited, the two NO.3 lights of the main tester and remote tester will not turn on.
If several cables are not connected, several lights will not turn on respectively. If less than two cables are connected, none of the lights is on.
If two ends of a cable is disordered, for example NO. 2and NO. 4, then displays on:
Main tester: 1-2-3-4-5-6-7-8-G
Remote tester: 1-4-3-2-5-6-7-8-G
If two cables are short circuited, neither of the corresponding lights is on of the remote tester while main tester remains unchanged. If three cables, including three, are short circuited, none of the corresponding lights is on.
If test patch panels or wall plate outlles, two cables which can match each other (RJ45) will be connected to the tester.
If test cables of the same axes, BNC turns on when the cable works.
9V reduplicated battery is used in this tester. Battery is advised to change if any weak light appears.( Battery is not included.)
It steps through each wire and tests each one. If any of them don’t work you’ll see the light not light up. For example: It lights up 1-2-3-4-5-6-7-8 in order…. If 5 is open you’ll see it skip 5 and go to 6.
Notes
-
This product is only used to check the connectivity of telephone and LAN cables.
-
Please do not disassemble this product. Can cause a failure and may not be usable.
-
Please keep this product out of reach of children.
