Key Features

• Easy to Use: Equipped with a vibrant 1.14-inch colorful LCD display, ensuring effortless installation and operation.
• Low Power Consumption: Designed with an energy-efficient structure and a battery-powered charging circuit for sustainable usage.
• Practical and Convenient: Features a customized button for enhanced usability in various applications.
• Wide Application Range: Compatible with Arduino and IoT projects, making it versatile for multiple uses.
• Durable Construction: Made with premium, rugged materials for a long-lasting lifespan.

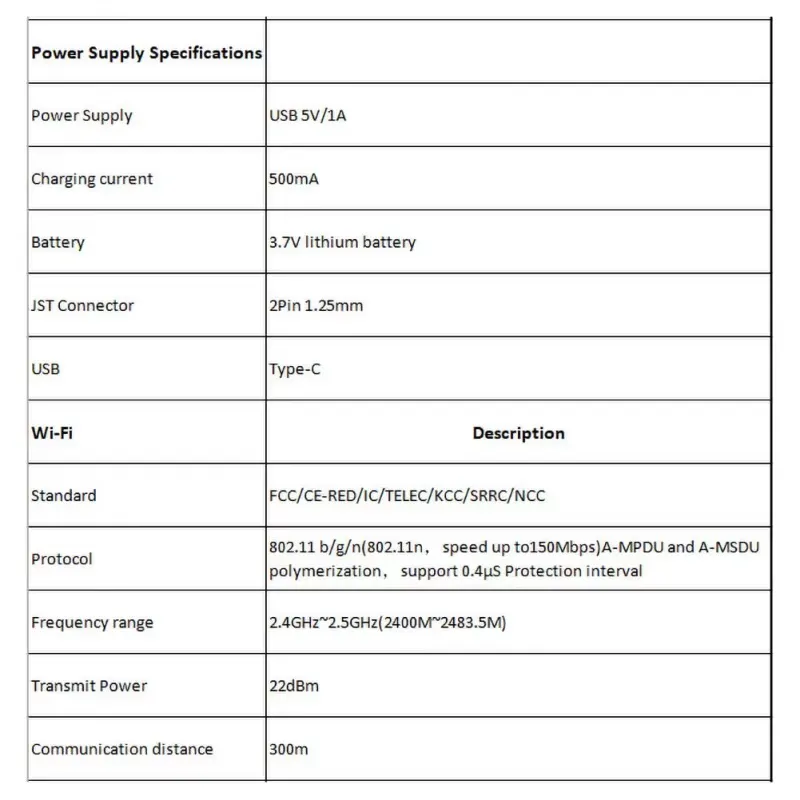

Technical Specifications

• Item: T-Display ESP32 WiFi and Bluetooth Dual Module
• Color: Black
• Display: 1.14-inch colorful LCD
• USB-Serial Chip: CH9102F
• Memory: 16MB
• Voltage: 3.7V
• Application: Suitable for Arduino and IoT projects

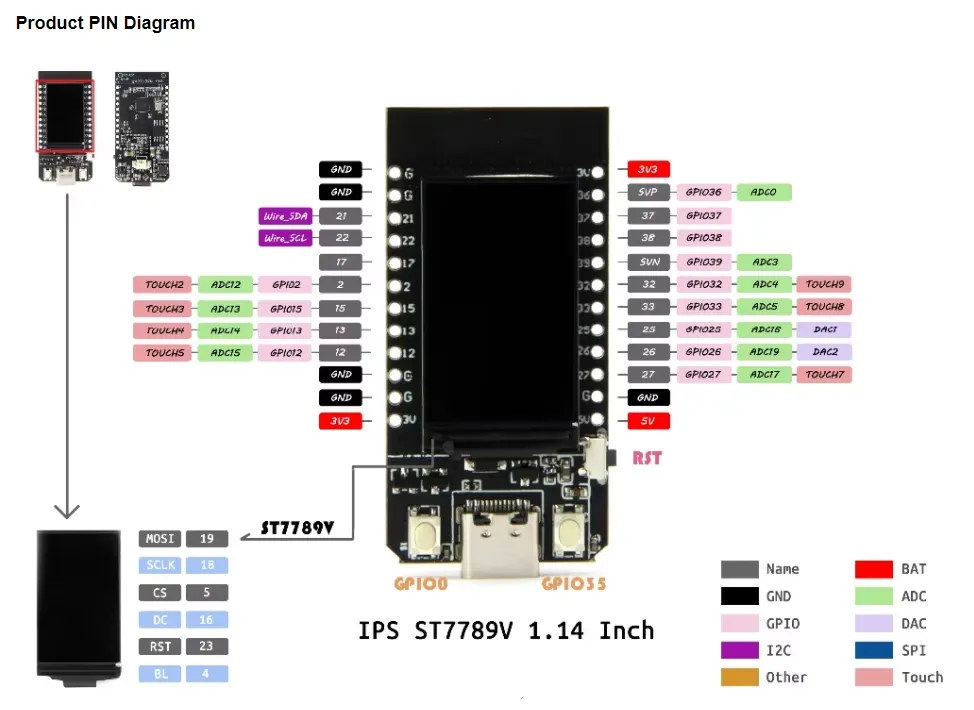

PIN Layout

Notes

• If the module's display does not light up after powering on, press the RST button on the side of the board.

• If you cannot upload the program, hold the S1 (GPIO0) button for 3 seconds, and you will see the progress bar start working.

This high-performance development board is a reliable solution for innovative electronics projects, combining durability with advanced functionality.
