Dual Shaft Geared Motor 1:48 DC 3-12V

₪17.00

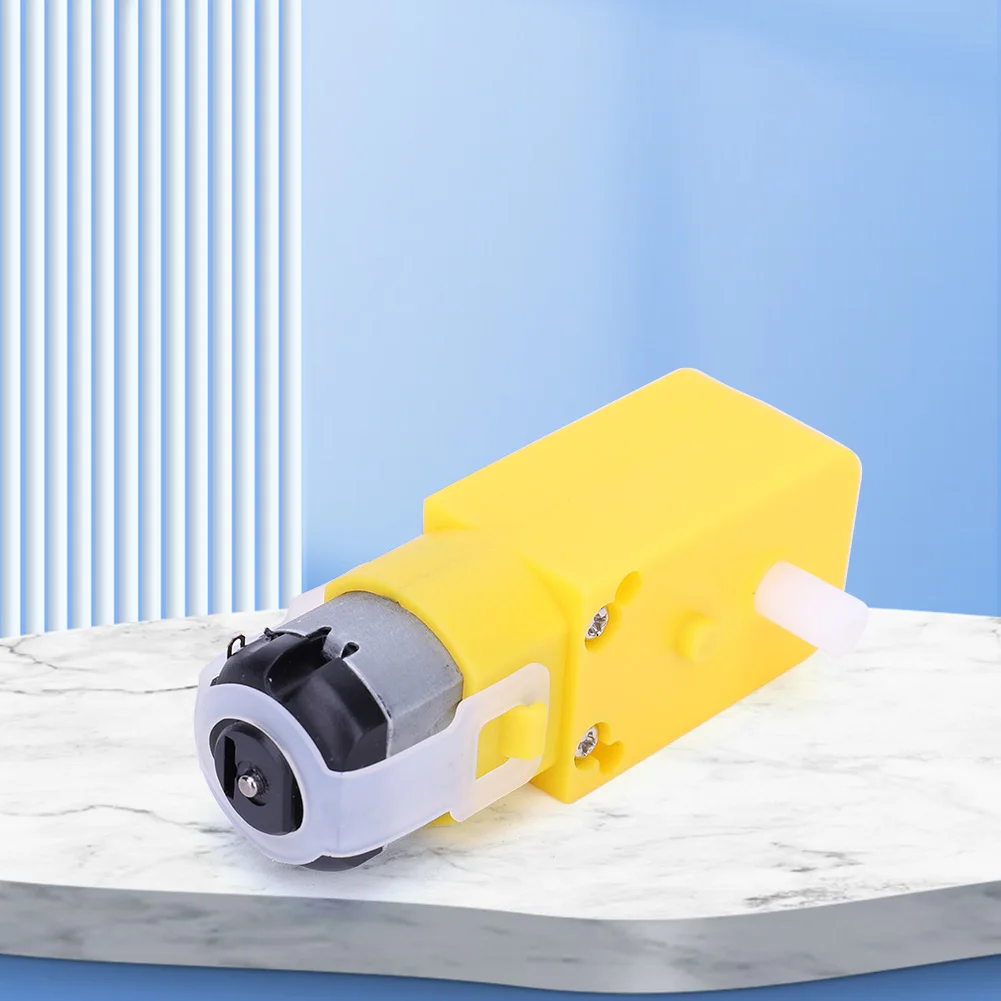

The TT Motor Module is a reliable and efficient motor designed for electric toy applications. Operating at a DC voltage range of 3V to 12V, it is optimized for 6V to 8V. This motor features a maximum torque of 800 GF CM MIN at 3V, a no-load speed ratio of 1:48 at 3V, and a compact size of 70mm x 37mm x 22mm. Enhanced with EMC for strong anti-interference capabilities, it ensures smooth operation without disturbing the microcontroller, making it superior to models without EMC.

متوفر في المخزون (يمكن الحجز بالطلب المسبق)

رمز المنتج: MOT-006940 التصنيف: الوسوم: , , , , , ,
Spread the love

الوصف

Specification:

  • Type: Module
  • Condition: New
  • Application: Electric Toy
  • Supply Voltage: DC3V-12 V
  • Model Number: TT Motor
  • Working voltage: 3V~12VDC (recommended working voltage is around 6 to 8V)
  • Maximum torque: 800 GF CM MIN (at 3V)
  • No-load speed: 1:48 (at 3V)
  • Load current: 70MA (250 MA MAX) (at 3V)
  • Product size: 70x37x22 mm/2.76×1.46×0.87 inch

This motor has added EMC, which has strong anti-interference ability. There is no disturbance to the microcontroller. Compared with the same model without EMC, the current without EMC is too large, which has a great impact on the operation of the robot, and the single-chip microcomputer cannot work normally.
